包装机

全自动包装机

产品描述：全自动包装机，适合粉末、颗粒等
在线订购

10-50kg Fully cassava/flour/starch/powder weighing filling packing machine

Food: sugar, rice, grain
Feed and seed: animal feed, seeds, etc.
Growing media: compost, peat moss, soils, mulch, etc.
Forestry: bark, wood pellets, paper pellets, etc.
Chemical: cat litter, fertilizer, plastic pellets, etc.
Mineral: coal, concrete mix, gravel, salt, sand, etc.

Technical Parameters
Model		HNB-G1-1A
Filling system		One spout, one filling
Bag material		(a)Paper or paper-laminated woven-cloth (b)Woven-cloth,inner laminated (c)Polyethylene
Capacity (motoring test)		Max 600 bags/hour
Filing weight		20-50kg/bag
Bag size	Length(mm)	550-1,050
	Width(mm)	400-520
	Gusset(mm)	75
Bag top closure		(a)Stitching (b)tapping paper (c)Heat sealing
Utility compressed air(5kg/cm²)		750Nomal liter/minute
Power required(Bag closing not included)		3.0kw
Net weight		Approx 1,200kg
Gross weight		Approx 1,300kg
Measurement		Approx1,700cft

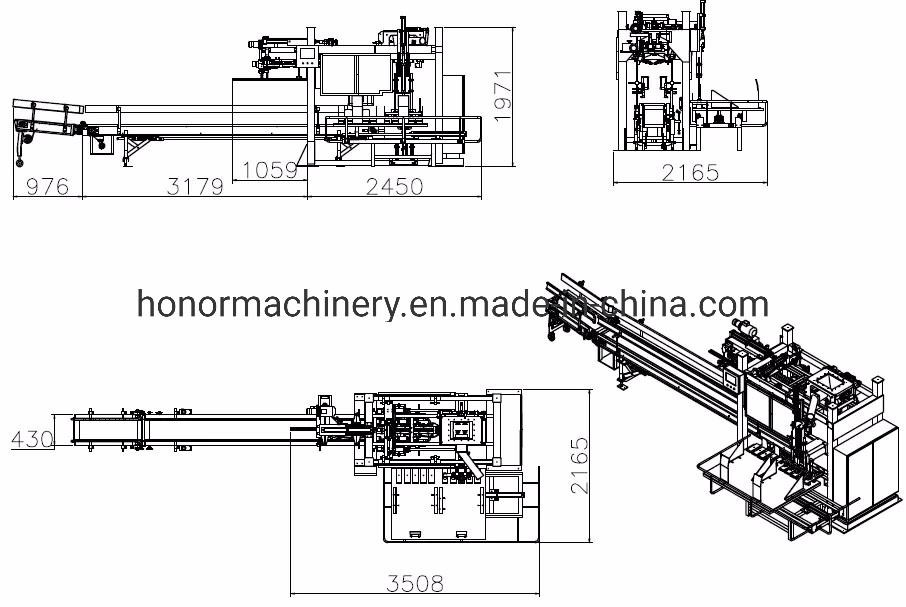

Detailed Images

Production rate
Up to 12BPM, can be double production rate if change the bag placer to be duplex.Depending on product characteristics, method of feeding, bag size,film thickness, etc.

Part list

No	Name	Brand
1	PLC	Germany Siemens
2	Touch screen	France Schneider
3	Pneumatic component	Japan SMC
4	Electric component	France Schneider
5	Approaching switch	Japan Omron

Accessory list

No	Name	Specification	Unit	Remark
1	Sucker	CP416-1204	1PC	Spare parts
2	Oil-free lubricated bearings	2025	1PC	Spare parts
3	Sucker	JB-XP03	1PC	Spare parts
4	Drum bearing	61804	1PC	Spare parts
5	Up wheel	CM8311	1PC	Spare parts
6	Down wheel	CK4028	1PC	Spare parts
7	Operation manual		1PC	File
